Pristatymas: 20 darbo dienų.

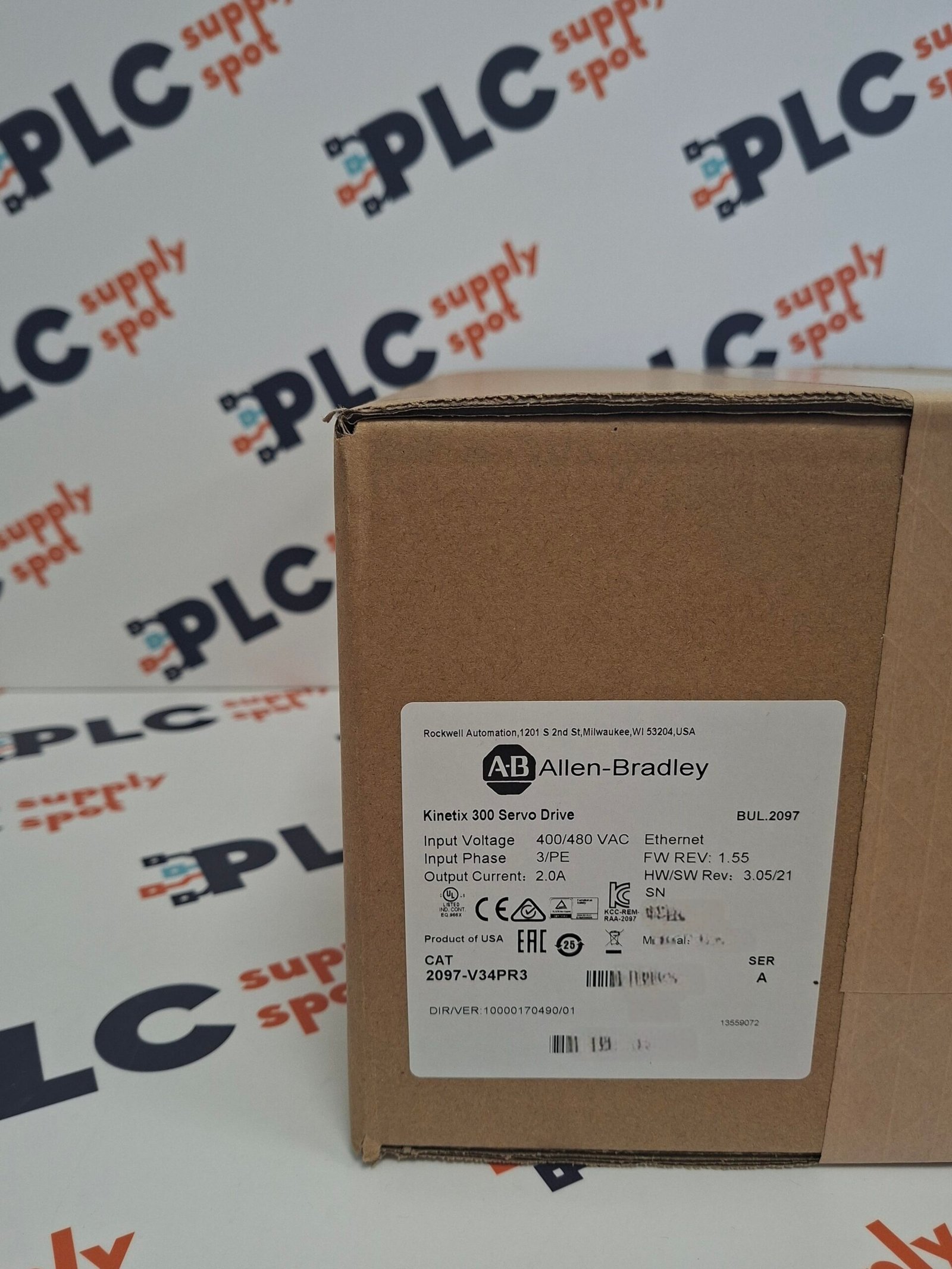

2097-V34PR3
Allen-Bradley 2097-V34PR3 yra Kinetix 300 EtherNet/IP servo pavara su 480 V AC trifaziu įėjimu ir 1,0 kW nominalia išėjimo galia.
Kaina
2586,96 €
Kiekis
12 mėnesių garantija
Visiems mūsų gaminiams
taikoma garantija
Saugus mokėjimas
Jūsų duomenys yra
apsaugoti
Allen-Bradley 2097-V34PR3 is a Kinetix 300 EtherNet/IP indexing servo drive designed for single-axis industrial motion control applications. It provides network-based configuration and control for servo motor systems used in automated machinery.
The drive operates from a 320–528 V AC three-phase supply with a nominal voltage of 480 V AC. It delivers 1.0 kW continuous output power, 2.0 A RMS continuous output current and up to 6.0 A RMS peak output current.
Manufacturer: Allen-Bradley / Rockwell Automation
Series: Kinetix 300
Product type: EtherNet/IP indexing servo drive
Article number: 2097-V34PR3
Input type: Three-phase AC
Nominal input voltage: 480 V AC
Input voltage range: 320–528 V AC RMS
Input frequency: 48–62 Hz
Nominal AC input current: 2.7 A RMS
Maximum inrush current: 4.5 A peak
Continuous output power: 1.0 kW
Continuous output current: 2.0 A RMS
Continuous output current: 2.8 A peak
Peak output current: 6.0 A RMS
Peak output current: 8.5 A peak
Peak current duration: Up to 2 seconds at 50% duty cycle
Communication: EtherNet/IP
Operating mode: Indexing
Integrated AC line filter: No
Control backup input: 20–26 V DC
Control backup current: 500 mA nominal
Shunt ON voltage: 780 V DC
Shunt OFF voltage: 750 V DC
Overvoltage threshold: 850 V DC
Short-circuit current rating: 100 kA RMS symmetrical
UPC: 884951147577
Country of origin: USA
Lifecycle status: Discontinued
Discontinued date: 2023-08-04
Engineering replacement: 2198-E4007-ERS
