VL18L-4P324
SICK V18 Laser retro-reflective photoelectric sensor for long-range object detection in industrial applications.
Price
199,12 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | SICK |
|---|---|
| Series | V18 Laser |
| Product type | Photoelectric Sensor |

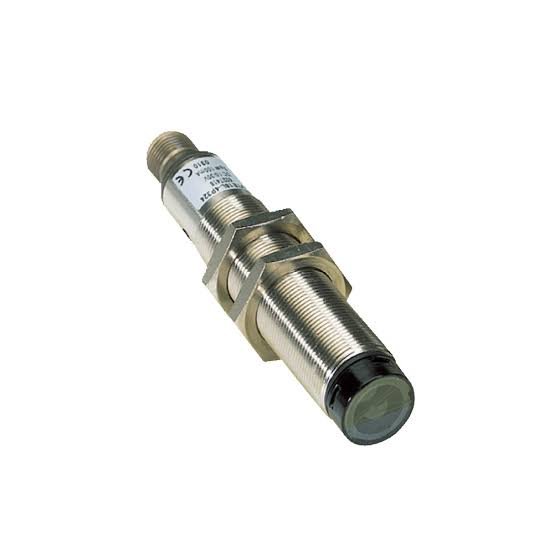

SICK VL18L-4P324 – V18 Laser photoelectric sensor
The SICK VL18L-4P324 is a V18 Laser photoelectric retro-reflective sensor designed for non-contact object detection in industrial automation applications. It uses a visible red laser light source and a dual lens system with minimum distance to the reflector.
This sensor provides a long sensing range of 0.1 m to 35 m and uses a PNP switching output with light/dark switching. The M12 4-pin connector supports fast installation and reliable electrical connection in machinery and control systems.
The VL18L-4P324 is suitable for applications such as conveyors, packaging machines, material handling systems and general automation equipment where precise object detection over longer distances is required.
Manufacturer: SICK
Product family: V18 Laser
Product type: Photoelectric retro-reflective sensor
Product code: VL18L-4P324
Part number: 6027430
Functional principle: Photoelectric retro-reflective sensor
Functional principle detail: Minimum distance to reflector, dual lens system
Sensing range: 0.1 to 35 m
Light source: Laser, visible red light
Wavelength: 650 nm
Laser class: Class 1
Switching output: PNP
Switching mode: Light/dark switching
Supply voltage: 10-30 V DC
Connection type: M12 male connector, 4-pin
Adjustment: Cable, teach-in button
Housing design: Cylindrical, straight
Thread diameter: M18 x 1
Dimensions: 18 x 18 x 97.7 mm
Protection rating: IP67
Application: Object detection with reflector
