S30A-7011CA
SICK S3000 Advanced safety laser scanner for hazardous area and access protection in industrial applications.
Price
3834,00 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | SICK |
|---|---|
| Series | S3000 Advanced |
| Product type | Safety Laser Scanner |

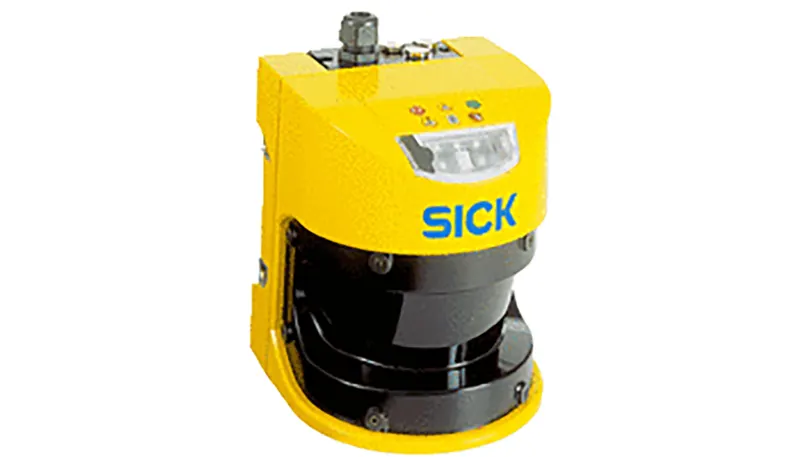

SICK S30A-7011CA – S3000 Advanced safety laser scanner
The SICK S30A-7011CA is an S3000 Advanced safety laser scanner designed for hazardous area protection, access protection and presence detection in industrial automation systems. It provides non-contact monitoring of defined protective and warning fields around machines, production cells and automated equipment.
This scanner offers a 7 m protective field range and a 49 m warning field range with a 190° scanning angle. It supports configurable resolutions and multiple monitoring cases, allowing the protection field layout to be adapted to the application.
The S3000 Advanced series is suitable for fixed industrial safety applications where reliable area monitoring, machine safeguarding and flexible protective field configuration are required.
Manufacturer: SICK
Product family: S3000 Advanced
Product type: Safety laser scanner
Product code: S30A-7011CA
Part number: 1023891
Application: Indoor
Protective field range: 7 m
Warning field range: 49 m
Distance measuring range: 49 m
Scanning angle: 190°
Resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm configurable
Number of field sets: 4
Number of fields: 12
Number of monitoring cases: 4
Type of field set: Triple field sets, dual field sets
Simultaneously monitored protective fields: Up to 4
Response time: 60 ms
Angular resolution: 0.5° / 0.25°, depending on range and resolution
Protection rating: IP65
Safety level: Type 3, SIL2
Device version: Sensor without system plug
