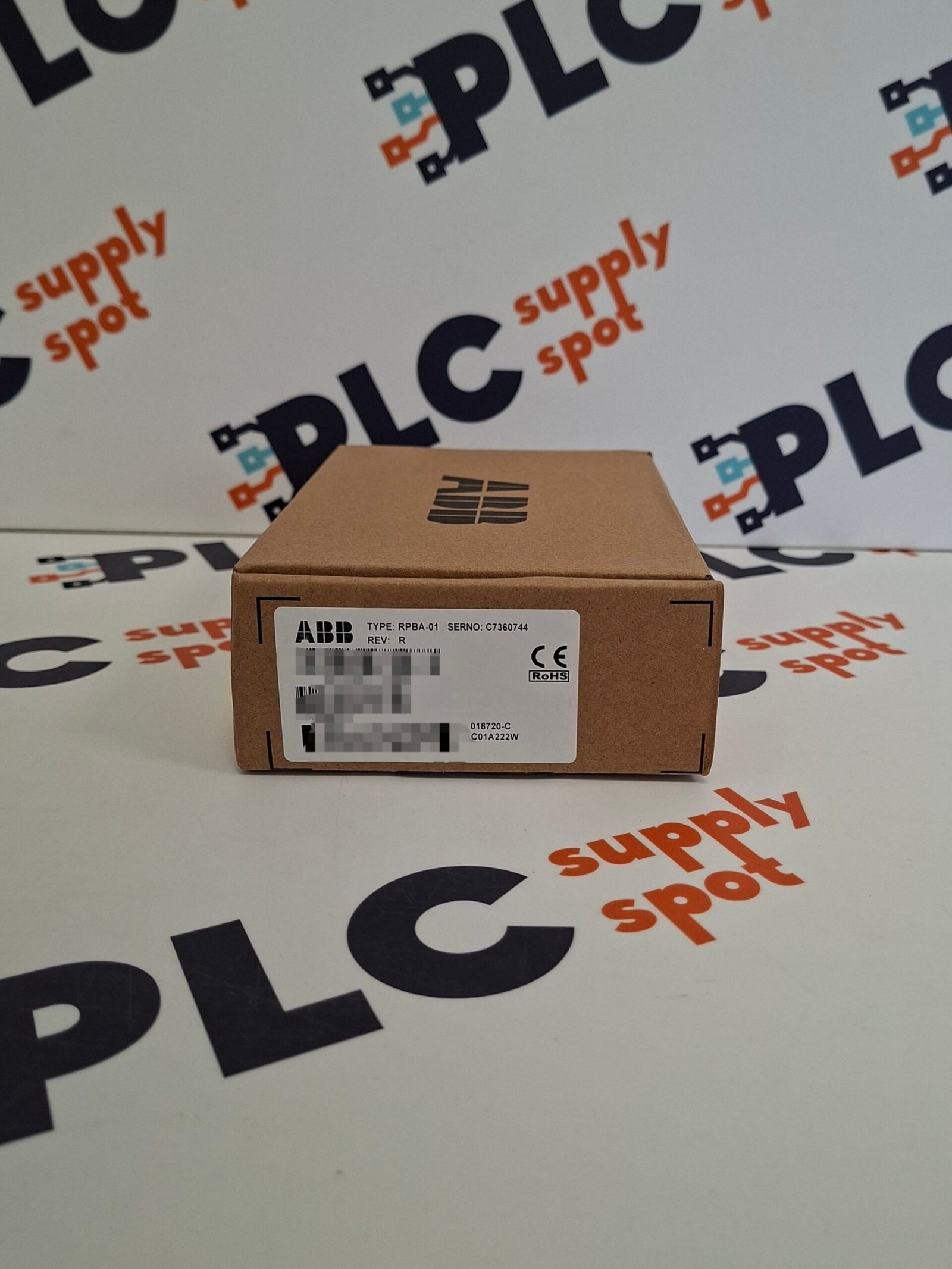

RPBA-01
ABB RPBA-01 is a PROFIBUS DP fieldbus adapter module for connecting compatible ABB drives to a PROFIBUS network. It supports DP-V0 and DP-V1, PPO message types 1–6, PROFIdrive and ABB Drives communication profiles.
Price
362,24 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
ABB RPBA-01 is an optional PROFIBUS DP fieldbus adapter module that enables compatible ABB variable frequency drives to communicate with PLCs and other PROFIBUS master devices. In the PROFIBUS network, the ABB drive operates as a slave station.
Through the RPBA-01, a control system can issue drive commands such as Start, Stop and Run Enable, send motor speed or torque references, read drive status and actual values, modify drive parameters and reset drive faults. It can also transfer process actual values or references to the drive’s PID controller where supported by the drive.
The module supports PROFIBUS DP-V0 and DP-V1, automatically detects the telegram type and supports PPO message types 1 through 6. Both PROFIdrive and ABB Drives communication profiles are supported. ABB lists the RPBA-01 as compatible with ACS550, ACH550 and ACS800 drive families.
Communication uses a shielded twisted-pair RS-485 physical interface. Supported transmission rates range from 9.6 kbit/s to 12 Mbit/s, with automatic baud-rate detection. The PROFIBUS connection uses a 9-pin female D-sub connector and includes integrated bus termination.
Manufacturer: ABB
Part number: RPBA-01
Product type: PROFIBUS DP Adapter Module
Device type: Fieldbus communication adapter
Protocol: PROFIBUS DP
PROFIBUS versions: DP-V0 / DP-V1
Communication profiles: PROFIdrive / ABB Drives
PPO messages: Types 1–6
Physical interface: RS-485
Network topology: Multi-drop
Communication type: Asynchronous, half-duplex
Transfer rates: 9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 kbit/s; 1.5 / 3 / 6 / 12 Mbit/s
Baud-rate detection: Automatic
Node address range: 00–99 via rotary switches
Maximum network size: 127 stations including repeaters
Stations per segment: Up to 31 without repeaters
Bus termination: Integrated, selectable by DIP switch
PROFIBUS connector: 9-pin female D-sub
Drive interface: 34-pin parallel bus connector
Maximum cyclic I/O data: 28 bytes in / 28 bytes out
Maximum acyclic I/O data: 240 bytes in / 240 bytes out
Maximum user parameter/diagnostic data: 26 bytes
Current consumption: Max. 350 mA at 5 V DC
Power supply: Supplied by drive control board
Protection rating: IP20
Estimated minimum lifetime: 100,000 h
Approx. dimensions: 95 × 34 × 62 mm
Diagnostic indication: LEDs
Compatible ABB drive families: ACS550 / ACH550 / ACS800
GSD file for DP-V0: ABB_0812.GSD
GSD file for DP-V1: ABB10812.GSD
EMC compliance: EN 50081-2 / EN 50082-2
