LV0040G100-4EOFN

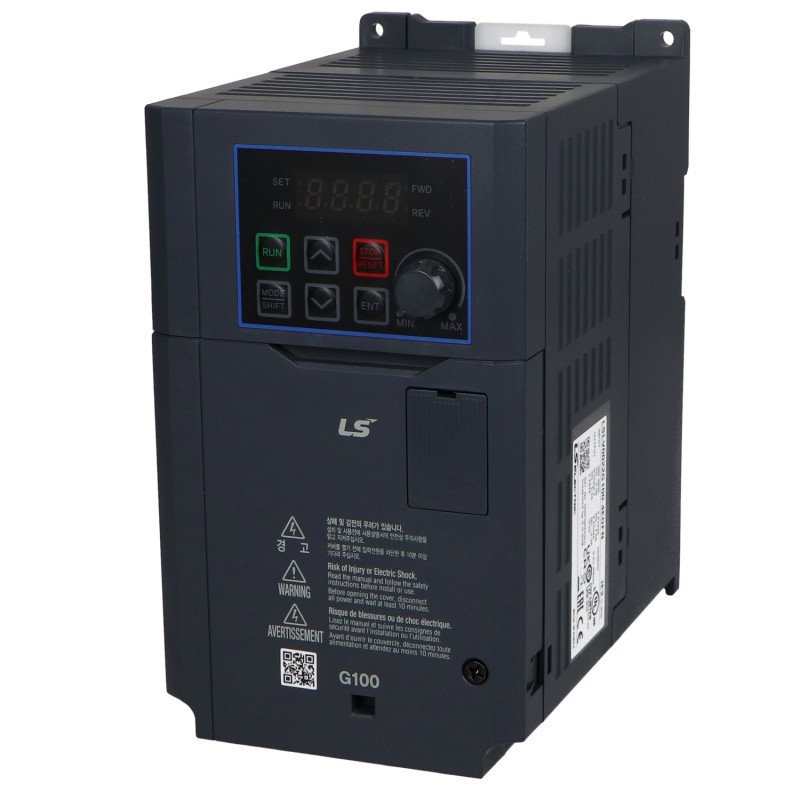

LS Electric LV0040G100-4EOFN is a G100 Series vector inverter designed for variable-speed control of three-phase AC motors. The drive has a maximum motor power rating of 4 kW, operates from a 380–480 V AC three-phase supply, and provides a three-phase 400 V-class motor output.

The G100 platform supports sensorless vector control and V/F control, making it suitable for a broad range of industrial machinery, including conveyors, pumps, fans, compressors and other general-purpose motor applications. The drive’s rated current is 9.3 A, while its output frequency can be adjusted from 0 to 400 Hz.

The LV0040G100-4EOFN provides five inputs, one analog input and one analog output. Motor speed can be commanded using 0–10 V or 4–20 mA analog signals. Programming is performed through the keypad, while electrical connections use screw terminals. Protection functions include overload and overtemperature protection.

This -4EOFN configuration includes a built-in EMC filter. The G100 family is designed for compact installation and supports wall mounting, with DIN-rail installation also specified for this model by distributors. Its enclosure protection rating is IP20.
