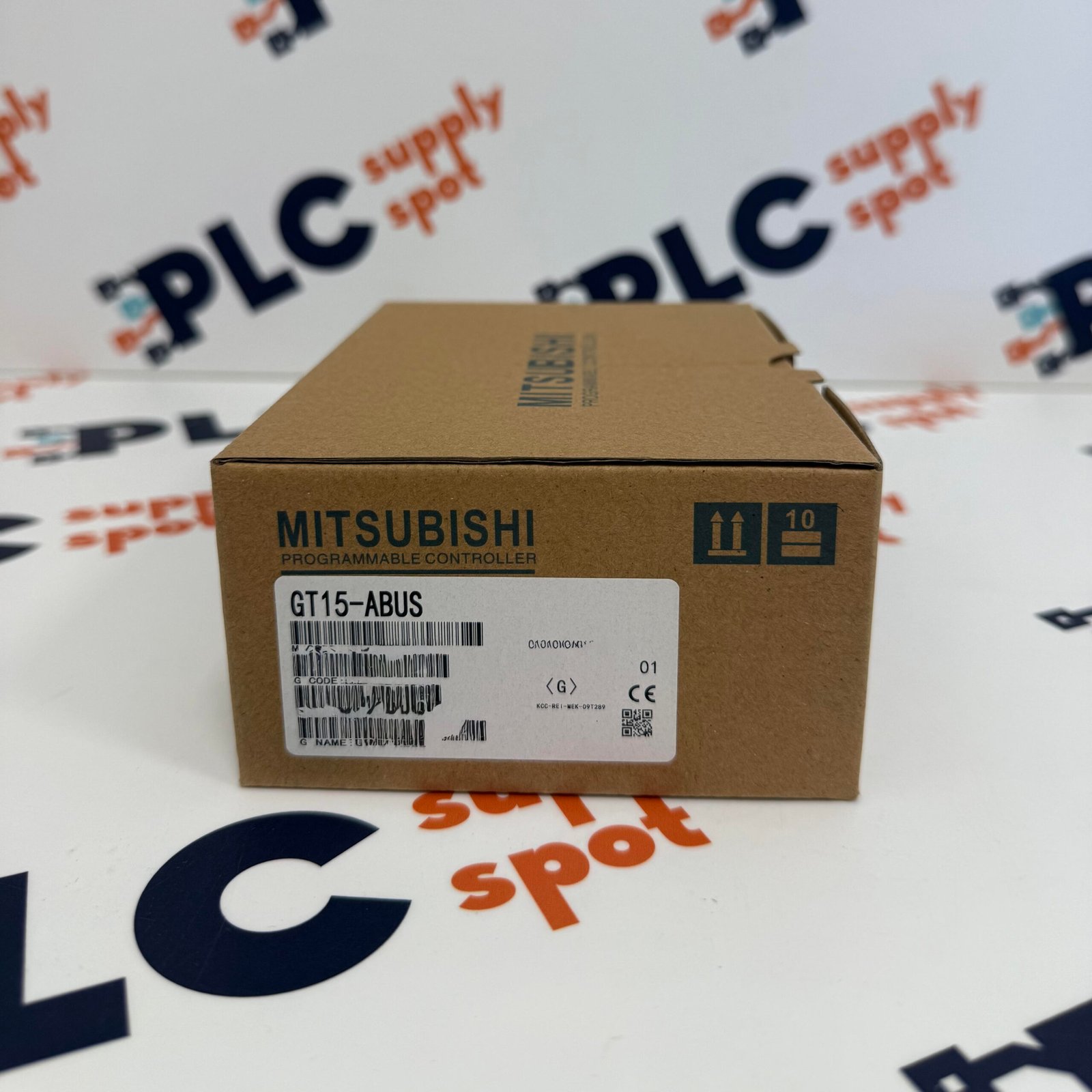

GT15-ABUS
Mitsubishi GT15-ABUS is a GOT1000 Series standard 1-channel bus connection unit designed to connect GT16 and GT15 operator terminals to QnA/ACPU and A-Series Motion Controller CPU systems.
Price
1137,00 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | Mitsubishi |
|---|---|
| Series | GOT1000 |
| Product type | Bus Connection Unit |
Mitsubishi Electric GT15-ABUS is a GOT1000 Series bus connection unit used to establish direct bus communication between compatible Mitsubishi GOT operator terminals and A/QnA-series PLC or Motion Controller CPU systems. It is compatible with GT16 and GT15 GOT terminals.
The GT15-ABUS provides a single QnA/ACPU bus connection and has one IN-side bus connector with no OUT connector. For this reason, it is intended for a terminal/last GOT in the bus configuration rather than an intermediary GOT. The unit occupies 32 I/O points, assigned as 32 special points.
Internal current consumption is 0.12 A at 5 V DC, and the unit weighs approximately 0.13 kg. Mitsubishi lists UL, cUL, CE (EMC), KC and multiple marine approvals for this model.
GT15-ABUS is a discontinued product. Mitsubishi states that orders ended in December 2014, production ended in January 2015, and repair support ended in January 2022
Manufacturer: Mitsubishi Electric
Part number: GT15-ABUS
Series: GOT1000
Product category: Communication Unit
Product type: Bus Connection Unit
Bus connection: QnA/ACPU
Bus channels: 1
IN connectors: 1
OUT connectors: None
I/O occupied points: 32
I/O assignment: 32 special points
Internal supply voltage: 5 V DC
Internal current consumption: 0.12 A
Compatible GOT models: GT16 / GT15
CPU compatibility: ACPU / QnACPU / A-Series Motion Controller CPU
Installation position: Terminal / Last GOT
Weight: 0.13 kg
Approx. overall dimensions: 63 × 107 × 30.5 mm
Compliance: UL / cUL / CE (EMC) / KC / LR / NK / DNV / ABS / RINA / BV
Lifecycle status: Discontinued
Order acceptance end: December 2014
Production end: January 2015
Repair support end: January 2022
