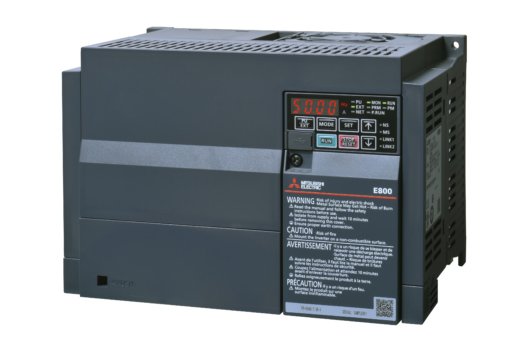

Mitsubishi FR-E840-0170EPA-60 FREQROL E840 VFD Drive (60 Hz)
FR-E840 series Mitsubishi variable frequency drive, 60 Hz, for industrial motor control.
Price
889,00 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | Mitsubishi |
|---|---|
| Product type | VFD Drive |
| Series | FREQROL / FR-E800 |
Manufacturer: Mitsubishi Electric
Series: FR-E800
Product type: Frequency inverter
Model: FR-E840-0170EPA-60
European order code: 500093
Global order code: 1ACHA7
Input: 3-phase AC
Rated voltage: 380–480 V AC
Permissible voltage: 323–528 V AC
Rated motor capacity ND: 7.5 kW
Rated motor capacity LD: 11 kW
Rated output current ND: 17 A
Rated output current LD: 23 A
Frequency range: 0.2–590 Hz
Motor types: Induction motor / PM motor
Control: V/F, Real Sensorless Vector, PM Sensorless Vector, Magnetic Flux Vector
Safe Torque Off (STO): Yes
Brake chopper: Yes
Integrated EMC filter: No
PLC function: Yes, 2K steps
Digital inputs: 2
Relay outputs: 1
Analog inputs: 2
Ethernet ports: 2
EtherNet/IP: Yes
MODBUS/TCP: Yes
CC-Link IE TSN: Yes
CC-Link IE Field Basic: Yes
BACnet/IP: Yes
USB: Mini-B
Display: 4-digit LED
Protection rating: IP20
Dimensions: 220 x 150 x 147 mm
Weight: Approx. 2.4 kg
