ACS180-04N-17A0-4
ABB ACS180 machinery drive for compact and reliable three-phase motor speed control.
Price
459,19 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | ABB |
|---|---|
| Series | ACS180 |
| Product type | VFD Drive |

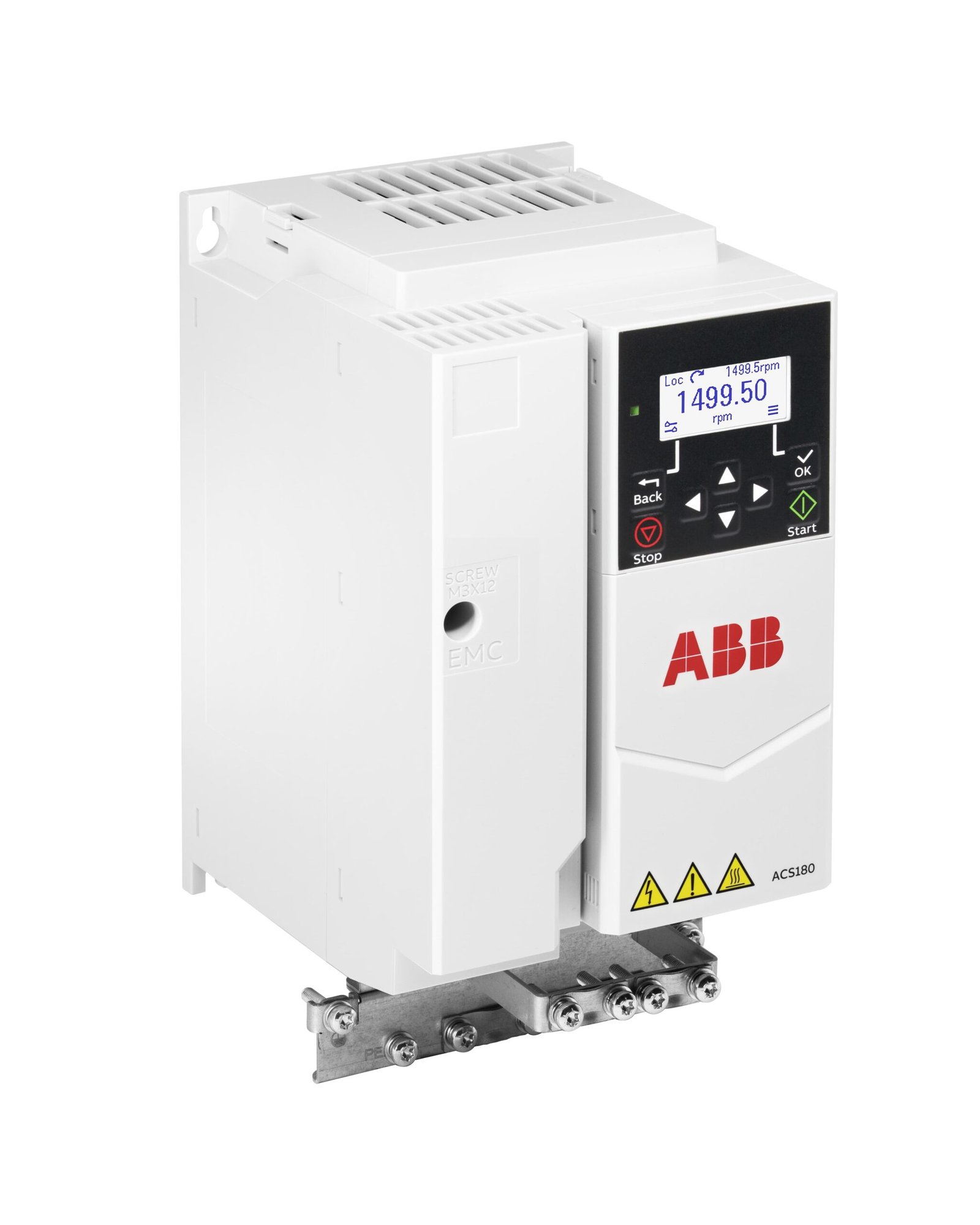

ABB ACS180-04N-17A0-4 – ACS180 machinery drive
The ABB ACS180-04N-17A0-4 is a compact LV AC machinery drive designed for controlling the speed of three-phase motors in industrial machinery applications. It is suitable for standard automation systems where reliable motor control, compact installation and stable performance are required.
This model is rated at 7.5 kW and 17.0 A for 400 V applications. The ACS180 series is commonly used with pumps, fans, conveyors, compressors, mixers and other motor-driven equipment.
The drive is designed for cabinet installation and provides a practical variable speed control solution for machine builders and industrial users working with compact control panels.
Manufacturer: ABB
Product family: ACS180
Product type: LV AC machinery drive module
Product code: ACS180-04N-17A0-4
Rated power IEC: 7.5 kW
Rated current IEC: 17.0 A
Voltage class IEC: 400 V
Rated power UL: 10 Hp
Rated current UL: 14.0 A
Voltage class UL: 460 V
Input voltage: 380-480 V
Number of phases: 3
Frequency: 47-63 Hz
Frame size: R2
Degree of protection: IP20 / UL open type
Mounting type: Module / cabinet installation
Communication protocol: Modbus
Analog inputs: 2
Analog outputs: 1
