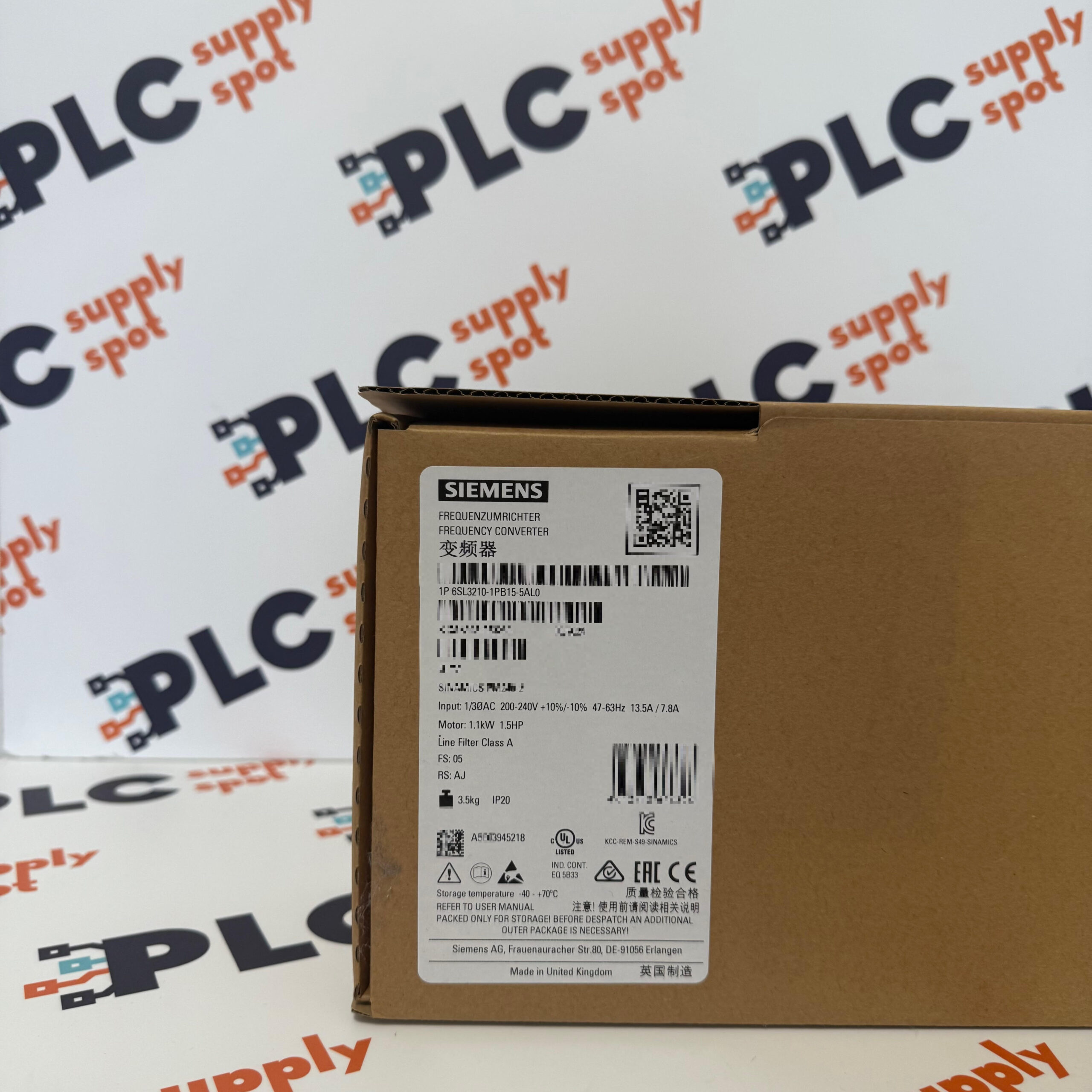

6SL3210-1PB15-5AL0
Siemens 6SL3210-1PB15-5AL0 is a SINAMICS PM240-2 power module rated at 1.1 kW with integrated Class A filter and braking chopper.
Price
253,85 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Weight | 3,1 kg |
|---|---|
| Dimensions | 114 × 185 × 365 cm |
| Siemens | Siemens |
Siemens 6SL3210-1PB15-5AL0 is a SINAMICS PM240-2 power module designed for industrial motor control and variable frequency drive applications. It operates from a 1- or 3-phase 200–240 V AC supply and provides a three-phase motor output.
The module delivers 1.1 kW in Low Overload operation or 0.75 kW in High Overload operation. It includes an integrated Class A line filter and braking chopper. The FSB housing provides IP20 protection and uses internal air cooling. A compatible SINAMICS Control Unit is required for operation.
Manufacturer: Siemens
Series: SINAMICS
Product family: PM240-2
Product type: Power module
Article number: 6SL3210-1PB15-5AL0
Input phases: 1 / 3 AC
Input voltage: 200–240 V AC ±10%
Input frequency: 47–63 Hz
Rated input current LO: 13.5 A / 7.8 A
Rated input current HO: 11.8 A / 6.8 A
Output phases: 3 AC
Rated output voltage: 230 V
Rated power LO: 1.1 kW
Rated power HO: 0.75 kW
Rated output current LO: 6 A
Rated output current HO: 4.2 A
Maximum output current: 9 A
Pulse frequency: 4 kHz
Vector control output frequency: 0–200 Hz
V/f control output frequency: 0–550 Hz
Integrated line filter: Class A
Integrated braking chopper: Yes
Efficiency: 96%
Power factor: 0.85
Protection rating: IP20 / UL Open Type
Frame size: FSB
Cooling: Internal air cooling
Operating temperature LO: -10°C to +40°C
Operating temperature HO: -10°C to +50°C
Maximum relative humidity: 95%, non-condensing
Maximum shielded motor cable: 50 m
Maximum unshielded motor cable: 100 m
Dimensions: 100 x 292 x 165 mm
Net weight: 3.1 kg
Lifecycle status: Active product
