Delivery: 20 working days.
6SE6400-1PB00-0AA0
Siemens 6SE6400-1PB00-0AA0 is a PROFIBUS communication module designed for MICROMASTER 4 frequency drives.
Price
175,36 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Siemens | Siemens |
|---|---|
| Series | MICROMASTER 4 |
| Product type | Communication module |

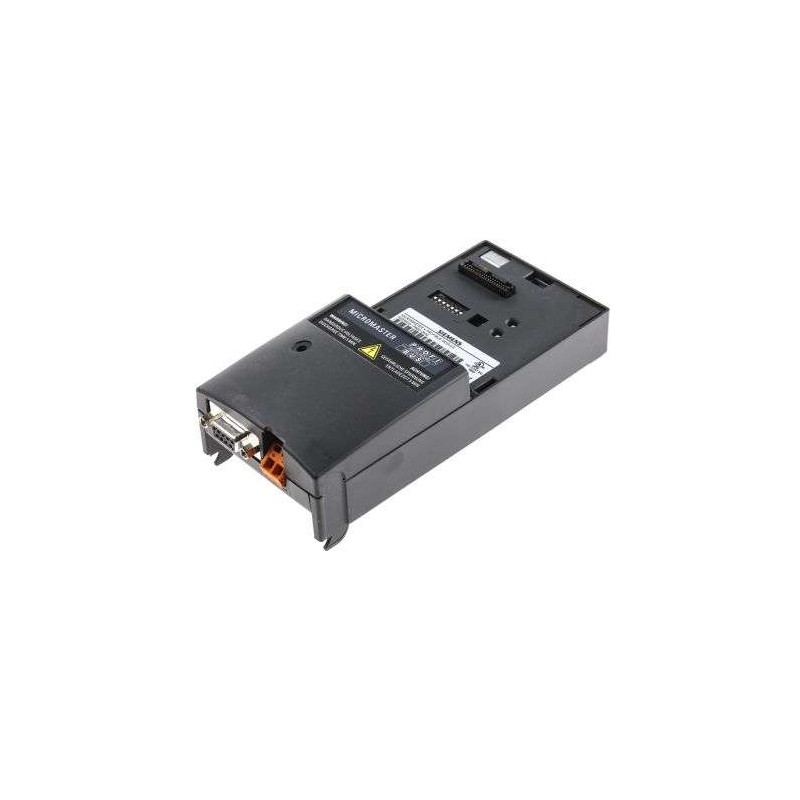

Siemens 6SE6400-1PB00-0AA0 – MICROMASTER 4 PROFIBUS module
The 6SE6400-1PB00-0AA0 is an optional PROFIBUS-DP communication module for the Siemens MICROMASTER 4 drive range. It connects the drive to higher-level control and automation systems through an industrial PROFIBUS network.
The module features a configurable PROFIBUS address, a communication status indicator and a dedicated PROFIBUS interface. It is normally powered internally by the inverter, although an external 24 V DC supply may also be used.
For mechanical reasons, MICROMASTER 4 frame sizes FX and GX require the Siemens 6GK1500-0EA02 PROFIBUS plug. Siemens classifies this discontinued product as a spare part.
Manufacturer: Siemens
Series: MICROMASTER 4
Product type: PROFIBUS communication module
Article number: 6SE6400-1PB00-0AA0
Communication: PROFIBUS
Maximum transmission rate: 12 MBaud
Internal supply: 6.5 V ±5%, max. 300 mA
External supply: 24 V ±10%, max. 350 mA
Output voltage: 5 V ±10%, max. 100 mA
Cooling: Natural air cooling
Operating temperature: -10°C to +50°C
Storage/transport temperature: -25°C to +70°C
Operating humidity: <85%, no condensation
Protection rating: IP20
Dimensions: 161 x 73 x 43.5 mm
Net weight: 0.300 kg
Packaging dimensions: 105 x 215 x 60 mm
EAN: 4019169447287
UPC: 662643429206
Country of origin: Great Britain
Special requirement: 6GK1500-0EA02 connector required for MM4 FX/GX
Lifecycle status: Discontinued / spare part
Product cancellation date: 2019-10-01
