Delivery: 20 working days.

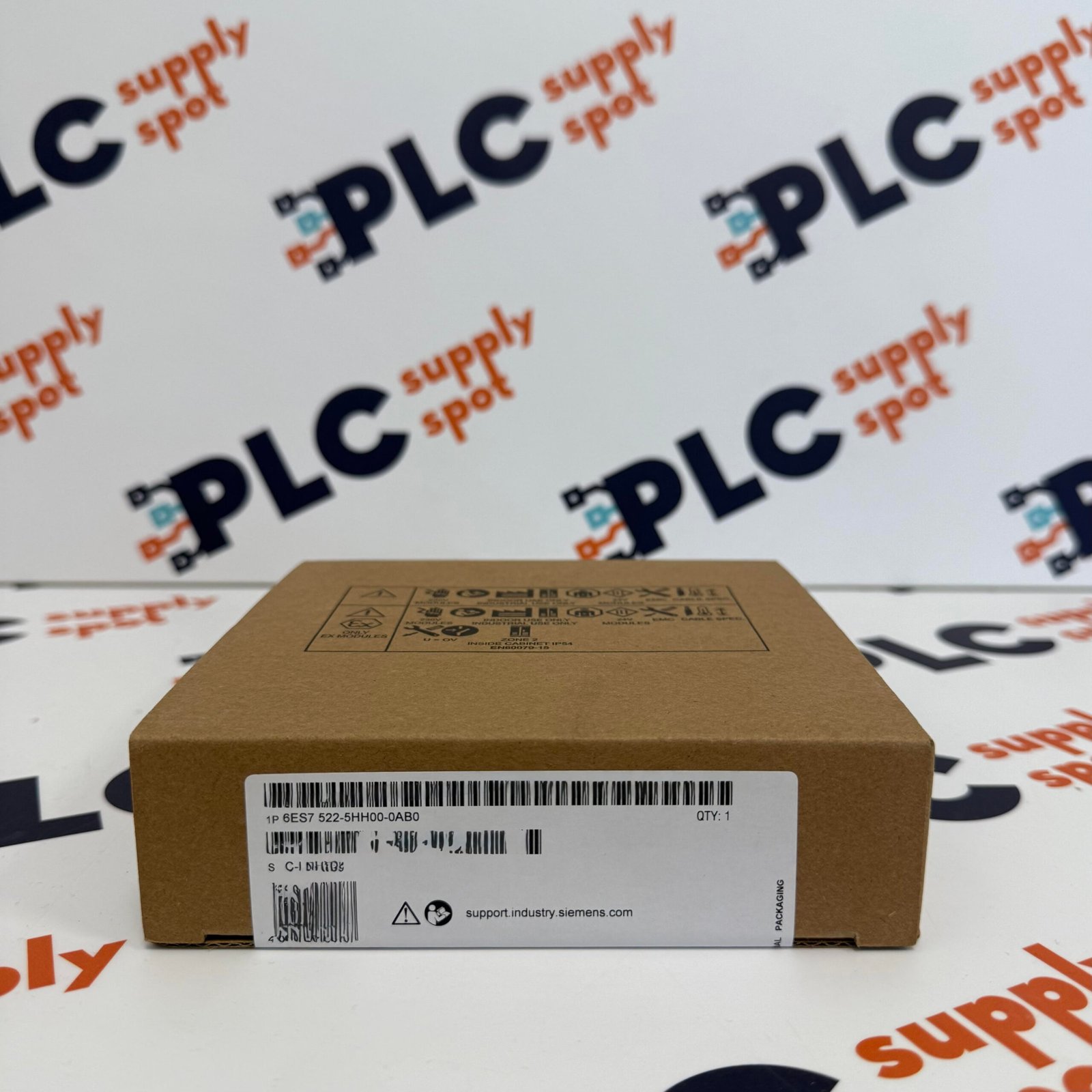

6ES7522-5HH00-0AB0
Siemens SIMATIC S7-1500 relay digital output module with 16 outputs for 230 V AC load control.
Price
380,25 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | Siemens |
|---|---|
| Series | SIMATIC S7-1500 |
| Product type | Digital Input Module |
Siemens 6ES7522-5HH00-0AB0 – SIMATIC S7-1500 relay output module
The Siemens 6ES7522-5HH00-0AB0 is a SIMATIC S7-1500 digital output module with relay outputs for controlling 230 V AC loads in industrial automation systems. It provides 16 relay output channels arranged in groups of 2, making it suitable for actuator and load switching applications.
This DQ 16x230V AC/2A ST module includes diagnostics, substitute value function and a switching cycle counter for the integrated relays. These functions help monitor output operation and support maintenance planning in machinery and process control systems.
The module also supports safety-oriented shutdown of load groups up to SIL1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. A front connector with screw terminals or push-in terminals must be ordered separately.
Manufacturer: Siemens
Product family: SIMATIC S7-1500
Module family: SM 522 digital output modules
Product type: Relay digital output module
Product code: 6ES7522-5HH00-0AB0
Module designation: DQ 16x230V AC/2A ST
Output type: Relay
Number of digital outputs: 16
Output voltage: 230 V AC
Output current per channel: 2 A
Channel grouping: 16 channels in groups of 2
Current per group: 4 A
Diagnostics: Yes
Substitute value function: Yes
Switching cycle counter: Yes, for integrated relay
Safety-oriented shutdown: Up to SIL1 according to EN IEC 62061:2021
Performance level: Category 2 / PL c according to EN ISO 13849-1:2015
Front connector: To be ordered separately
Terminal options: Screw terminals or push-in terminals
