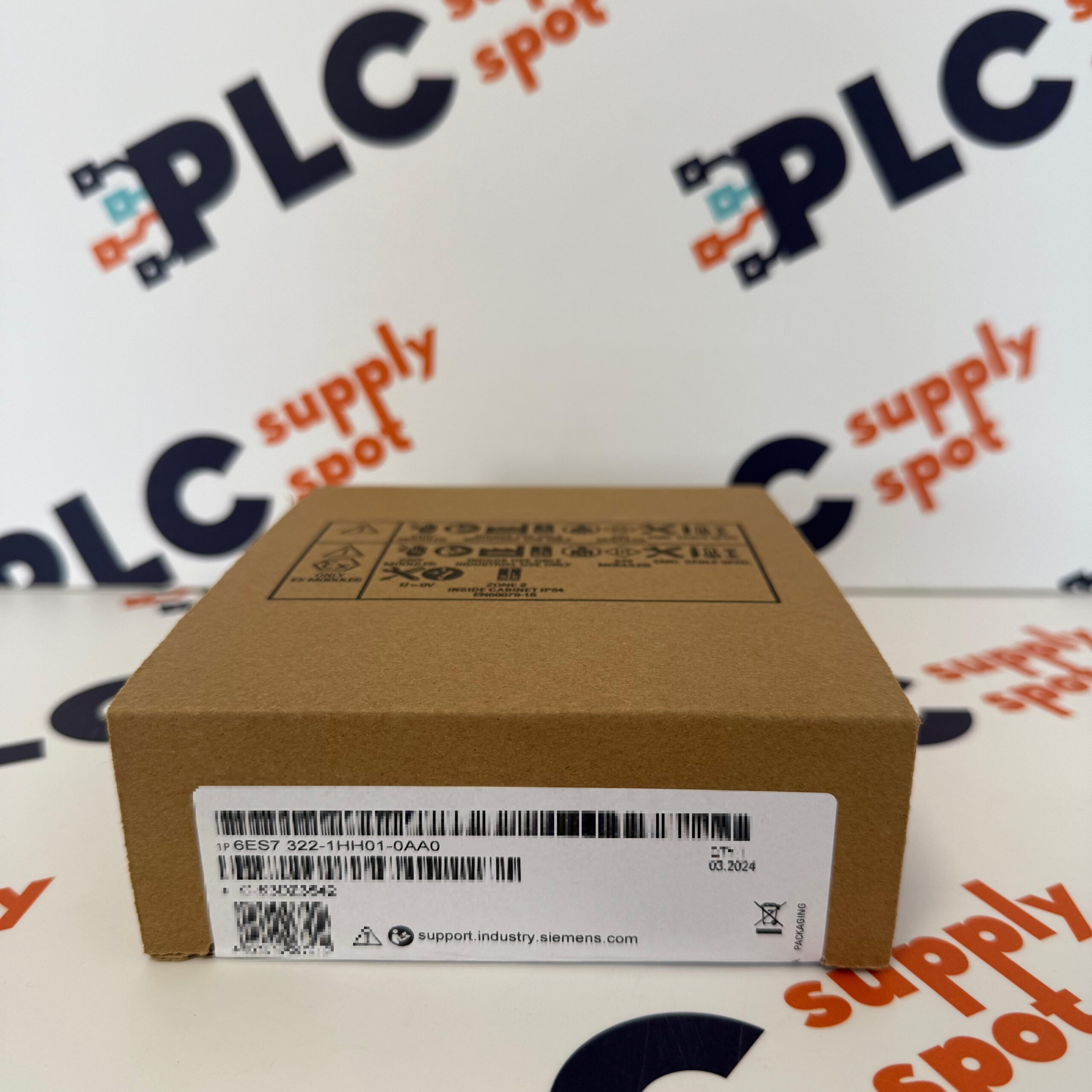

6ES7322-1HH01-0AA0
S7-300 digital output module with 16 channels for industrial automation.
Price
266,67 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Siemens | Siemens |
|---|
Siemens 6ES7322-1HH01-0AA0 is an SM 322 digital output module designed for SIMATIC S7-300 automation systems. It provides 16 isolated relay outputs for switching industrial loads and actuators.
The module supports loads up to 2 A per output and uses a 20-pin front connector. Outputs are electrically isolated in groups of eight, with LED status indication for each channel.
Manufacturer: Siemens
Series: SIMATIC S7-300
Product family: SM 322
Product type: Digital output module
Article number: 6ES7322-1HH01-0AA0
Digital outputs: 16
Output type: Relay
Output isolation: Yes
Output grouping: 2 groups of 8
Rated output current: 2 A
Minimum load current: 10 mA
Rated DC load voltage: 120 V DC
Rated AC load voltage: 230 V AC
Relay coil supply: 24 V DC
Lamp load: Max. 50 W at 230 V AC
Short-circuit protection: No
Switching frequency, resistive load: Max. 1 Hz
Switching frequency, inductive load: Max. 0.5 Hz
Mechanical switching frequency: Max. 10 Hz
Maximum total current per group: 8 A
Backplane bus current: Max. 100 mA at 5 V DC
Supply current: Max. 250 mA
Typical power loss: 4.5 W
Status indication: Green LED per output
Diagnostics: No
Isolation test voltage: 1500 V AC
Shielded cable length: Max. 1000 m
Unshielded cable length: Max. 600 m
Front connector: 20-pin
Width: 40 mm
Height: 125 mm
Depth: 120 mm
Weight: Approx. 250 g
EAN: 4025515067412
UPC: 662643170993
Country of origin: Germany
Lifecycle status: Phase-out / Spare Part
Product phase-out since: 2023-10-01
