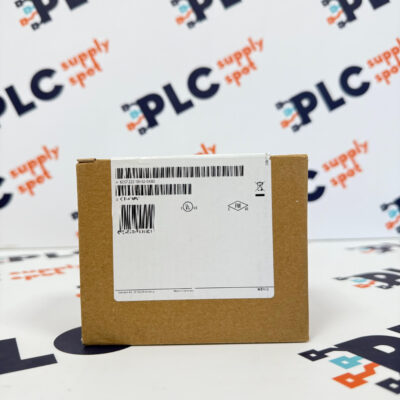

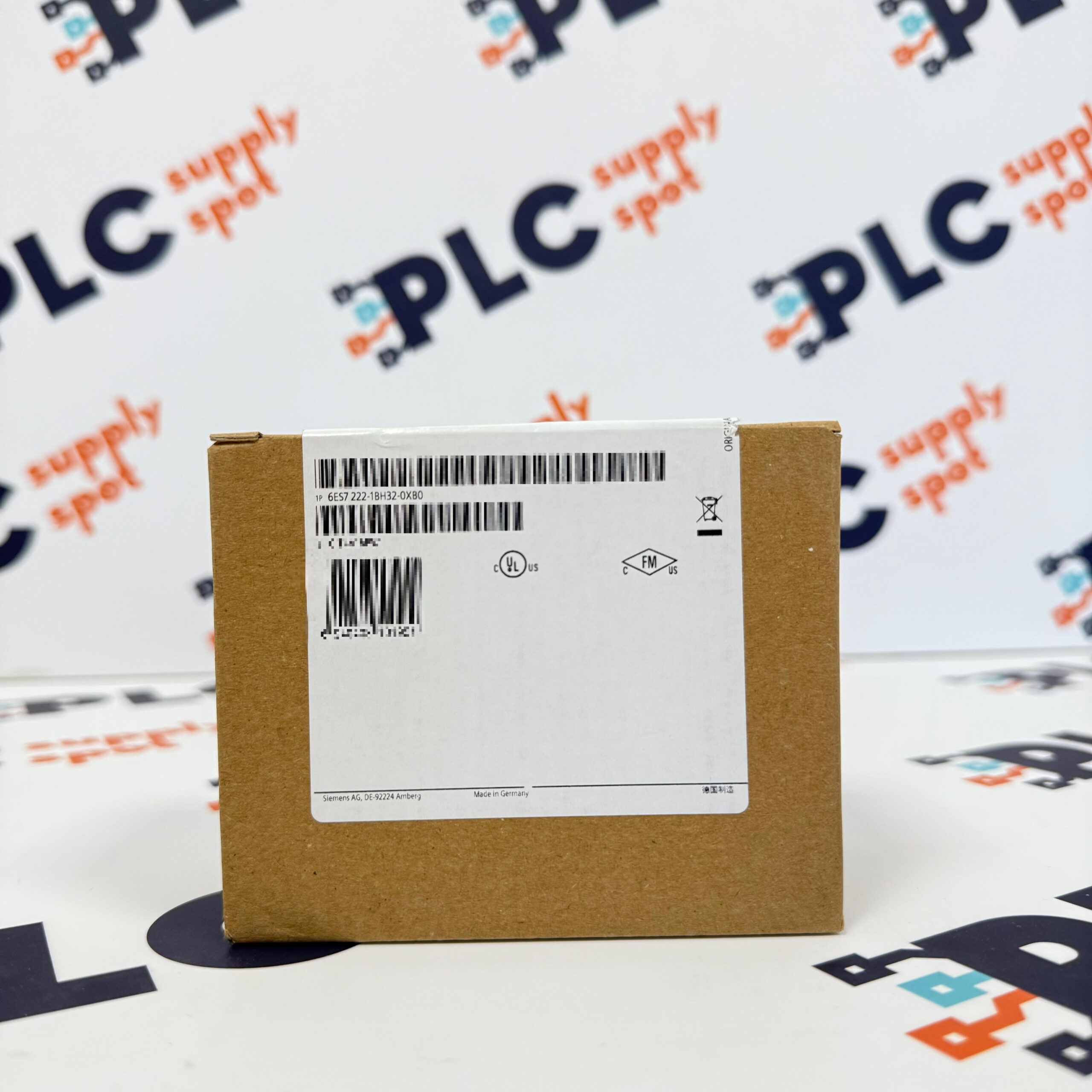

6ES7222-1BH32-0XB0
Siemens SIMATIC S7-1200 SM 1222 digital output module for expanding PLC output channels.
Price
129,26 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Weight | 0,358 kg |
|---|---|
| Dimensions | 10,8 × 11,6 × 8,3 cm |
| Siemens | Siemens |
| Series | SIMATIC S7-1200 |
| Product type | Digital Output Module |
Siemens 6ES7222-1BH32-0XB0 – SIMATIC S7-1200 digital output module
The Siemens 6ES7222-1BH32-0XB0 is a SIMATIC S7-1200 SM 1222 digital output module designed for expanding the output capacity of S7-1200 PLC systems. It provides 16 transistor outputs for switching 24 V DC loads in compact industrial automation applications.
This module is suitable for controlling actuators, relays, signal lamps and other DC field devices. The transistor output design supports fast and reliable switching for machine control and distributed automation tasks.
The SM 1222 module is used with compatible SIMATIC S7-1200 controllers in control cabinets, production equipment and small to medium automation systems.
Manufacturer: Siemens
Product family: SIMATIC S7-1200
Product type: Digital output module
Product code: 6ES7222-1BH32-0XB0
Module designation: SM 1222, DQ 16×24 V DC/0.5 A
Number of digital outputs: 16
Output type: Transistor
Output voltage: 24 V DC
Output current per channel: 0.5 A
Supply voltage range: 20.4 to 28.8 V DC
Backplane bus current: 5 V DC, max. 140 mA
Power loss: Typ. 2.5 W
Short-circuit protection: No, external protection required
Dimensions W x H x D: 45 x 100 x 75 mm
Net weight: Approx. 0.198 kg
Application: Digital output expansion for SIMATIC S7-1200 PLC systems
Product status: Active product
