Delivery: 20 working days.
6EP1334-3BA00
SITOP PSU100S industrial power supply for 24 V DC applications.
Price
238,00 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected

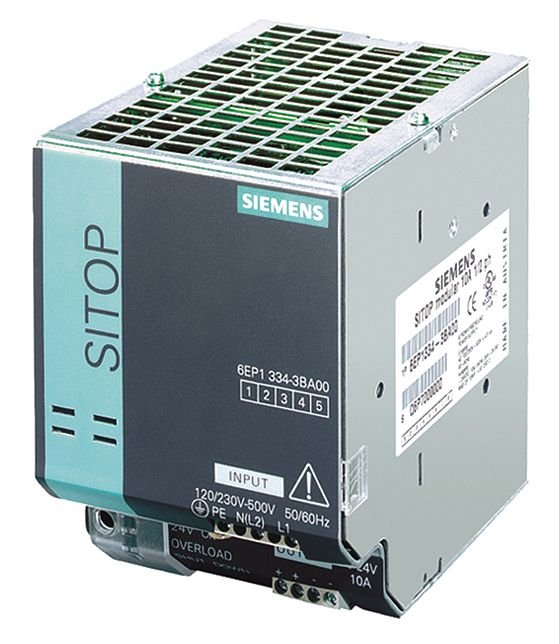

Siemens 6EP1334-3BA00 is a SITOP modular switched-mode power supply designed for industrial automation and control systems. It converts single-phase AC or two phases of a three-phase AC network into a stabilized 24 V DC supply.
The unit delivers up to 10 A output current and provides galvanic isolation, short-circuit protection and stable no-load operation. It is designed for DIN rail installation and natural air cooling
Manufacturer: Siemens
Series: SITOP modular
Product type: Industrial power supply
Article number: 6EP1334-3BA00
Power supply type: Switched-mode
Input: 1-phase / 2-phase AC
Rated input voltage: 120–230 / 230–500 V AC
Operating input range: 85–264 / 176–550 V AC
Frequency: 50/60 Hz
Output voltage: 24 V DC
Output current: 10 A
Output power: 240 W
Galvanic isolation: Yes
Short-circuit protection: Yes
No-load operation: Yes
Typical efficiency: 86%
Typical active power consumption: 280 W
Operating temperature: 0°C to +60°C
Storage/transport temperature: -25°C to +85°C
Cooling: Natural air cooling
Protection rating: IP20
Protection class: Class I
Mounting: DIN rail
Weight: Approx. 1.4 kg
