Delivery: 20 working days.
6AV2124-0QC02-0AX1
SIMATIC TP1500 Comfort HMI operator panel with 15″ widescreen color display, PROFINET and PROFIBUS communication interfaces for advanced machine visualization and control.
Price
3581,77 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | Siemens |
|---|---|
| Product type | HMI Touch Panel |
| Series | SIMATIC HMI TP1500 Comfort |

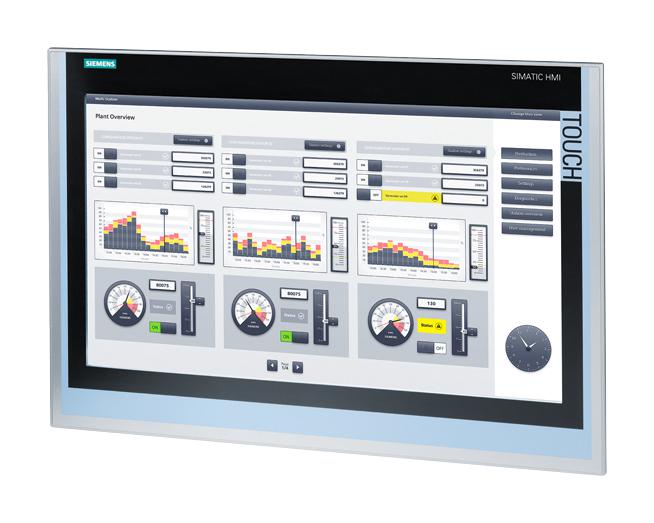

Siemens 6AV2124-0QC02-0AX1 – SIMATIC HMI TP1500 Comfort Panel
The Siemens 6AV2124-0QC02-0AX1 is a SIMATIC HMI TP1500 Comfort Panel designed for operator control and visualization in industrial automation systems. It features a 15.4″ widescreen TFT touch display with 16 million colors, providing a clear interface for machine operation, monitoring and diagnostics.
This Comfort Panel supports PROFINET communication as well as MPI/PROFIBUS DP, making it suitable for integration with Siemens PLC systems and distributed automation networks. The large display area is useful for applications that require detailed process screens, alarms, trends and operator interaction.
The TP1500 Comfort is configured with WinCC Comfort and is commonly used in machinery, production lines, control cabinets and process automation systems where reliable HMI operation is required.
Manufacturer: Siemens
Product family: SIMATIC HMI Comfort Panels
Product type: HMI touch panel
Product code: 6AV2124-0QC02-0AX1
Product designation: TP1500 Comfort
Display type: TFT widescreen
Screen diagonal: 15.4″
Resolution: 1280 x 800 pixels
Number of colors: 16 million colors
Operation: Touch operation
Configuration memory: 24 MB
Operating system: WEC 2013
Engineering software: Configurable from WinCC Comfort V14 SP1 with HSP
Interfaces: PROFINET, MPI/PROFIBUS DP
Ethernet interfaces: 2 ports
USB interfaces: 2 USB
Memory card slots: 2 SD card slots
Rated supply voltage: 24 V DC
Ambient operating temperature: Up to 50 °C, up to 55 °C with restrictions
Dimensions: 415 x 310 x 75 mm
Weight: Approx. 4.4 kg
