2090-K6CK-D15MF

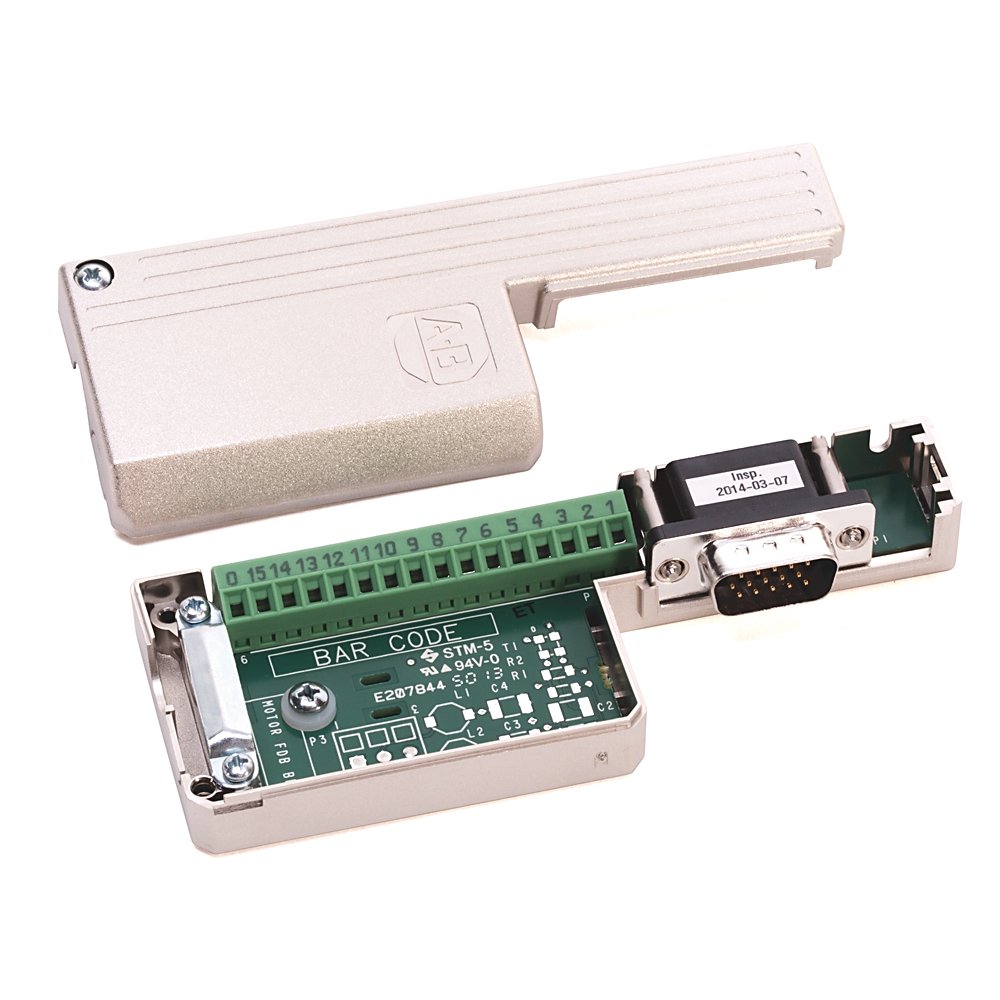

Allen-Bradley 2090-K6CK-D15MF is a low-profile motor feedback connector kit from the Bulletin 2090 motion-control accessories range, developed for Kinetix 6000 servo drive systems.

The kit features a 15-pin male D-sub connector with screw-terminal connections, enabling motor feedback cable wiring to compatible Kinetix 6000 integrated axis modules (IAM) and axis modules (AM).

A distinguishing feature is its integrated filter for the motor thermal switch circuit. This allows the connector kit to interface with compatible 1326AB series motors using resolver feedback, including 1326ABxxxx-21 motor configurations.

The connector kit is designed for use with 1326-CCUT-L-xxx motor feedback cables. It accommodates cable diameters from 4 to 10 mm and conductor sizes from 0.06 to 1.31 mm² (30–16 AWG).

Its compact, low-profile construction helps simplify motor feedback connections in industrial servo drive installations. Screw terminals, cable shielding provisions and mechanical cable clamping support reliable wiring and signal transmission.

The product is intended for maintaining and servicing existing Kinetix 6000 motion-control systems. Rockwell Automation discontinued this connector kit on December 31, 2025, and lists no planned direct replacement.
