Delivery: 20 working days.
1SVR040008R1300
ABB CC-U/V universal voltage signal converter for converting measured voltage signals into standard analog output signals.
Price
1050,00 €
Quantity
12 month warranty
Warranty on all
our products
Secure payment
Your data is
protected
| Manufacturer | Allen-Bradley |
|---|---|
| Series | CC-U |
| Product type | Universal Signal Converter |

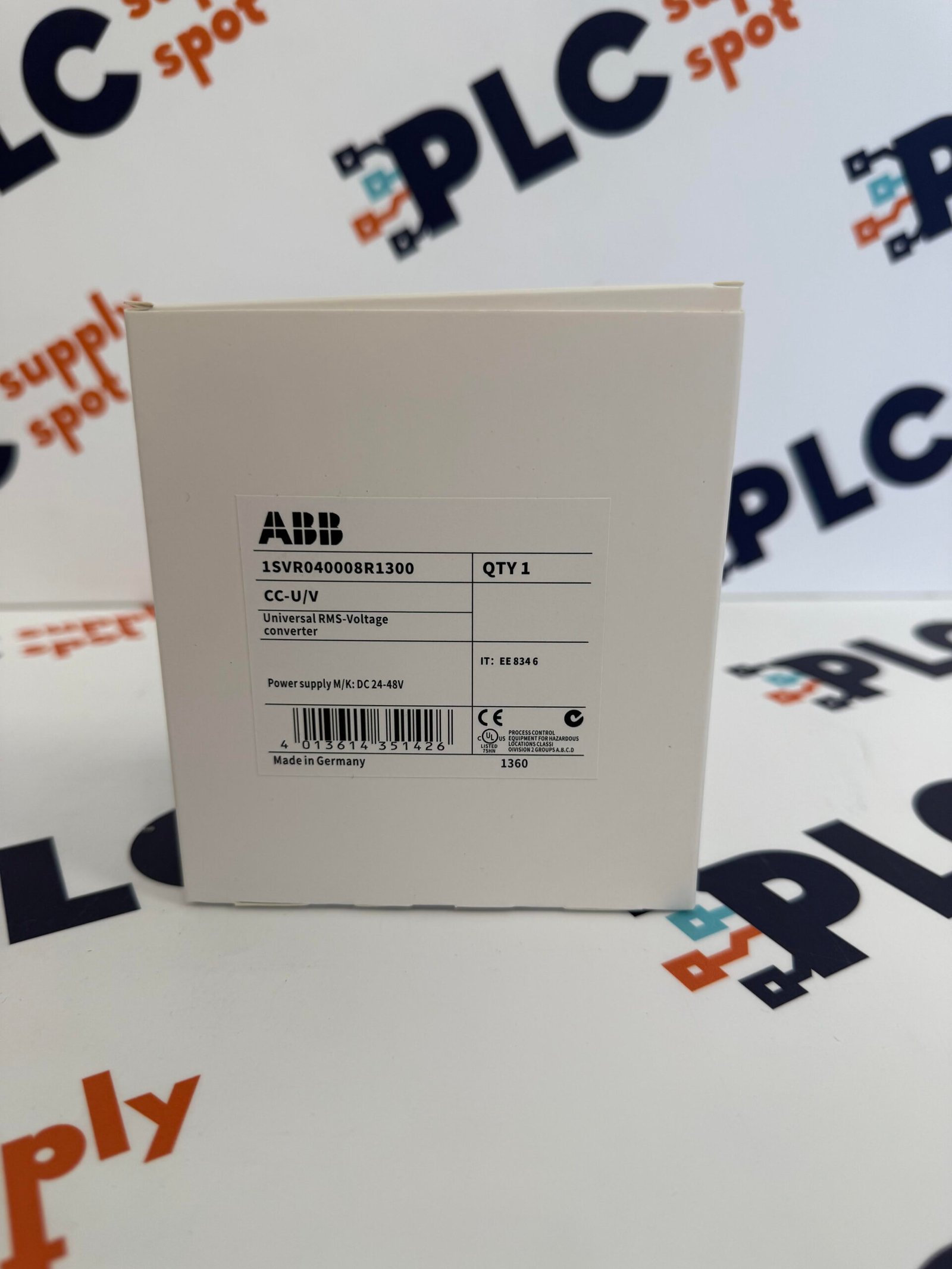

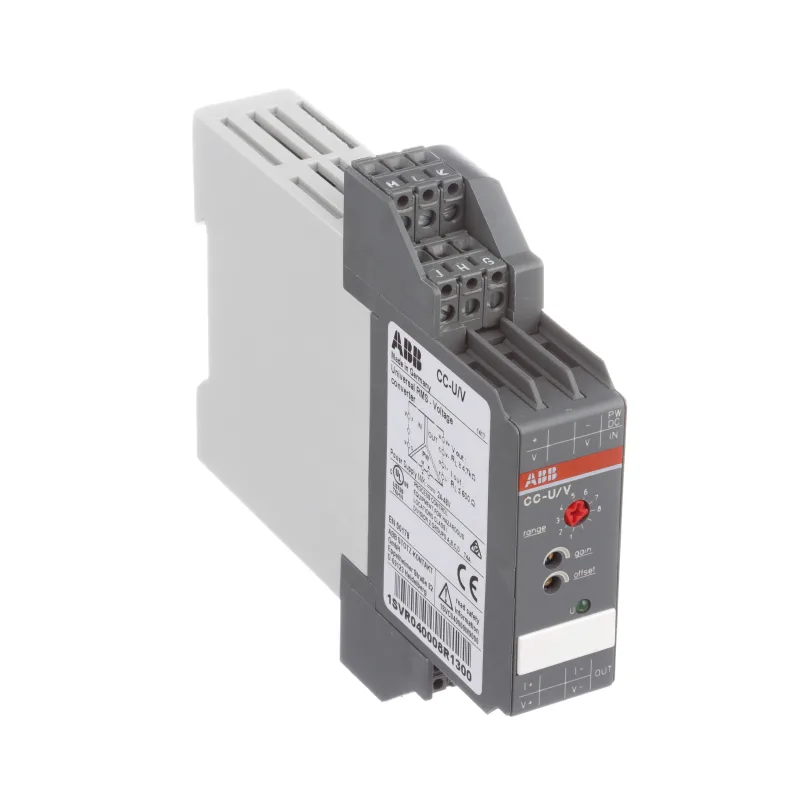

ABB 1SVR040008R1300 – CC-U/V universal signal converter
The ABB 1SVR040008R1300 is a CC-U/V universal signal converter designed for measuring and converting voltage RMS values in industrial control and automation systems. It is suitable for applications where AC or DC voltage signals need to be converted into standard analog output signals.
This converter provides 3-way electrical isolation between input, output and supply, helping improve signal reliability and system protection. Input ranges and output formats are selected by DIP switches, allowing flexible adaptation to different measurement requirements.
The CC-U/V converter is designed for DIN rail mounting and is commonly used in control cabinets, monitoring systems, machine automation and electrical measurement applications.
Manufacturer: ABB
Product family: CC-U
Product type: Universal voltage signal converter
Product code: 1SVR040008R1300
Product designation: CC-U/V
Input signal: Voltage RMS values
Input voltage ranges: 0-100 V, 0-150 V, 0-250 V, 0-300 V, 0-400 V, 0-450 V, 0-550 V, 0-600 V
Input waveform: AC or DC, any waveform
Output signal: Universal standard analog output
Output configuration: DIP-switch selectable
Electrical isolation: 3-way isolation
Supply voltage: 24-48 V DC / 24 V AC
Mounting type: DIN rail mounting
Terminal type: Pluggable connecting terminals
Protection rating: IP20
Operating temperature: -20 to +60 °C
Weight: Approx. 0.128 kg
Application: Voltage measurement and signal conversion
