Reliable PLC controller FBS‑60MAT2‑AC for industrial automation

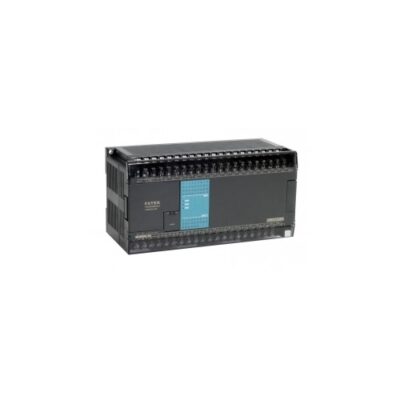

The FBS‑60MAT2‑AC is a programmable logic controller from Fatek’s FBs series, designed for AC-powered control systems. It provides 36 digital inputs and 24 transistor (NPN) outputs, making it ideal for medium-sized applications that require high-speed processing and flexible I/O options. The controller features high-speed counting, pulse output capabilities, and supports modular expansion through side and top modules. With its AC power input and versatile communication options, it is a reliable core unit for industrial automation.
Technical specifications
-
Manufacturer: Fatek
-
Series: FBs series (main unit)
-
Digital inputs: 36 (24 V DC)
-
Digital outputs: 24 (transistor NPN type)
-
High-speed input capability: 2 channels @ 100 kHz, 6 channels @ 20 kHz
-
High-speed output capability: 2 channels @ 100 kHz, 6 channels @ 20 kHz
-
Analog signal support: via expansion modules
-
Communication: 1 built-in port (RS-232 or USB), expandable to 3 ports (RS-232, RS-485, Ethernet)
-
Power supply: 100–240 V AC
-
Expansion options: Supports right and top-side expansion modules
-
Operating temperature: 0 to 55 °C
-
Dimensions: approx. 90 × 175 × 80 mm
-
Weight: approx. 0.7 kg
Key advantages
-
Large number of built-in I/Os for complex control tasks
-
High-speed input/output for pulse and encoder applications
-
Supports multiple communication protocols with optional ports
-
Modular expandability ensures long-term flexibility
-
AC-powered – ideal for industrial cabinet integration
-
Proven Fatek reliability in demanding environments
Application and use cases of FBS‑60MAT2‑AC
The FBS‑60MAT2‑AC is well-suited for a variety of automation systems, including conveyor control, packaging machinery, pick-and-place robotics, and production line equipment. It is designed to manage both standard digital logic and time-critical tasks such as high-speed counters and stepper motor pulse outputs.
About the manufacturer
Fatek Automation is a well-established manufacturer from Taiwan, known for developing durable and high-performance programmable logic controllers. The FBs series stands out for its compact design, modular structure, and reliable operation in a wide range of industrial environments.
