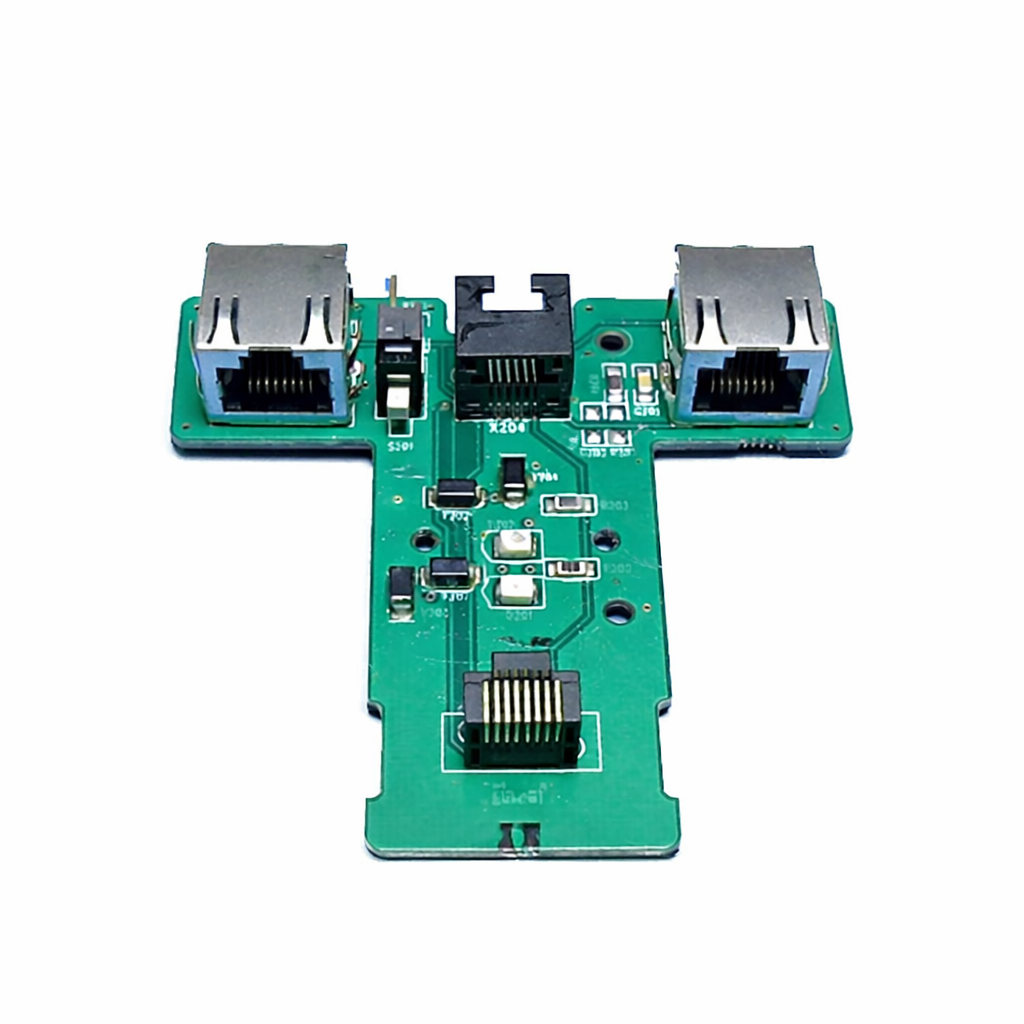

ABB 3AUA0000058712 – ZDPI-01 pulse encoder interface module

The ABB 3AUA0000058712 is a ZDPI-01 pulse encoder interface module designed to process feedback signals from pulse encoders in ABB drive systems. The module enables accurate speed, position and direction feedback by converting encoder signals into a format usable by the drive control electronics.

The ZDPI-01 module supports connection of incremental encoders and is used to improve motion control accuracy and system responsiveness. It is installed directly into compatible ABB frequency converters and drive units, allowing reliable feedback integration without external signal converters.

This interface module is engineered for continuous operation in industrial environments and is commonly used in applications where precise motor feedback is required for stable and accurate drive control.

Technical characteristics:
• Product code: 3AUA0000058712
• Module type: ZDPI-01 pulse encoder interface
• Function: encoder feedback signal processing
• Supported signals: incremental pulse encoder signals
• Installation: plug-in module for ABB drives
• Application environment: industrial drive systems

Typical applications:
• Motor speed and position feedback
• Closed-loop drive control systems
• Industrial motion control applications
• Conveyors, hoists and processing machines
• ABB variable frequency drive systems

About the manufacturer:
ABB is a global supplier of drives, motors and automation solutions used across manufacturing, energy and process industries.
