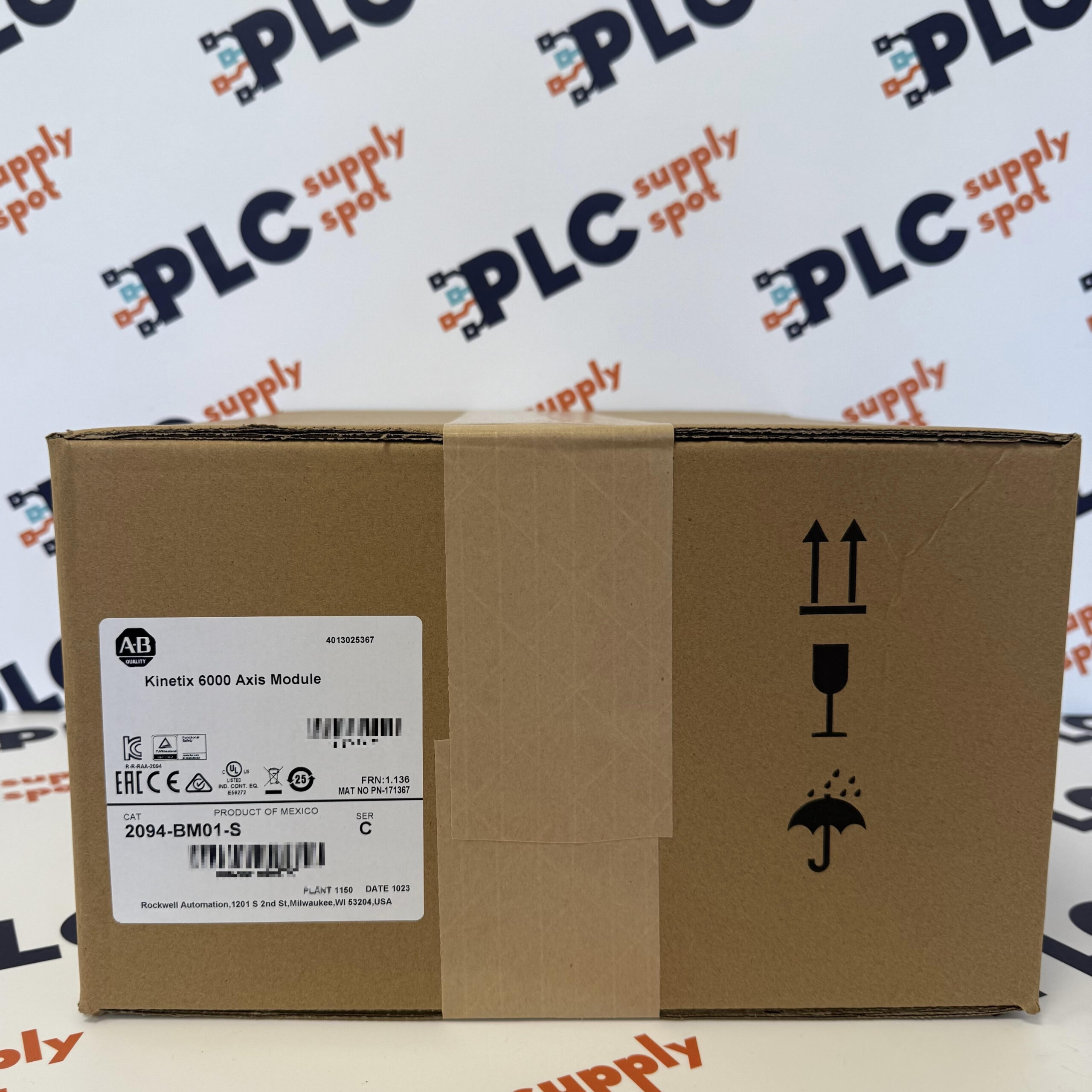

Allen-Bradley 2094-BM01-S – Kinetix 6000 axis module

The Allen-Bradley 2094-BM01-S is a servo axis module from the Kinetix 6000 series designed for high-performance motion control applications. It controls a single servo motor axis and works together with Kinetix power supply modules to create scalable multi-axis drive systems for industrial automation.

The module provides precise control of motor speed, torque and position, making it suitable for applications requiring accurate synchronization and dynamic motion control. It integrates seamlessly with Rockwell Automation motion control architecture and ControlLogix systems.

Technical overview:
• Product type: Servo axis module
• Series: Kinetix 6000
• Model: 2094-BM01-S
• Number of axes: 1 servo axis
• Continuous output current: approx. 9 A
• Peak output current: approx. 19 A
• Input voltage: 325 V DC bus (from Kinetix power module)
• Compatible motors: Allen-Bradley Kinetix servo motors
• Communication: SERCOS interface via Kinetix control modules
• Mounting: Kinetix 6000 drive system chassis
• Operating temperature: 0°C to +50°C
• Designed for industrial environments

Typical applications:
• Multi-axis motion control systems
• Automated production lines
• Packaging and assembly machines
• Robotics and pick-and-place systems
• CNC and precision machinery

About the manufacturer:
Allen-Bradley, a brand of Rockwell Automation, is one of the world’s leading manufacturers of industrial automation equipment. The company develops PLC platforms, motion control systems, industrial networks and automation solutions used across manufacturing and process industries worldwide.
