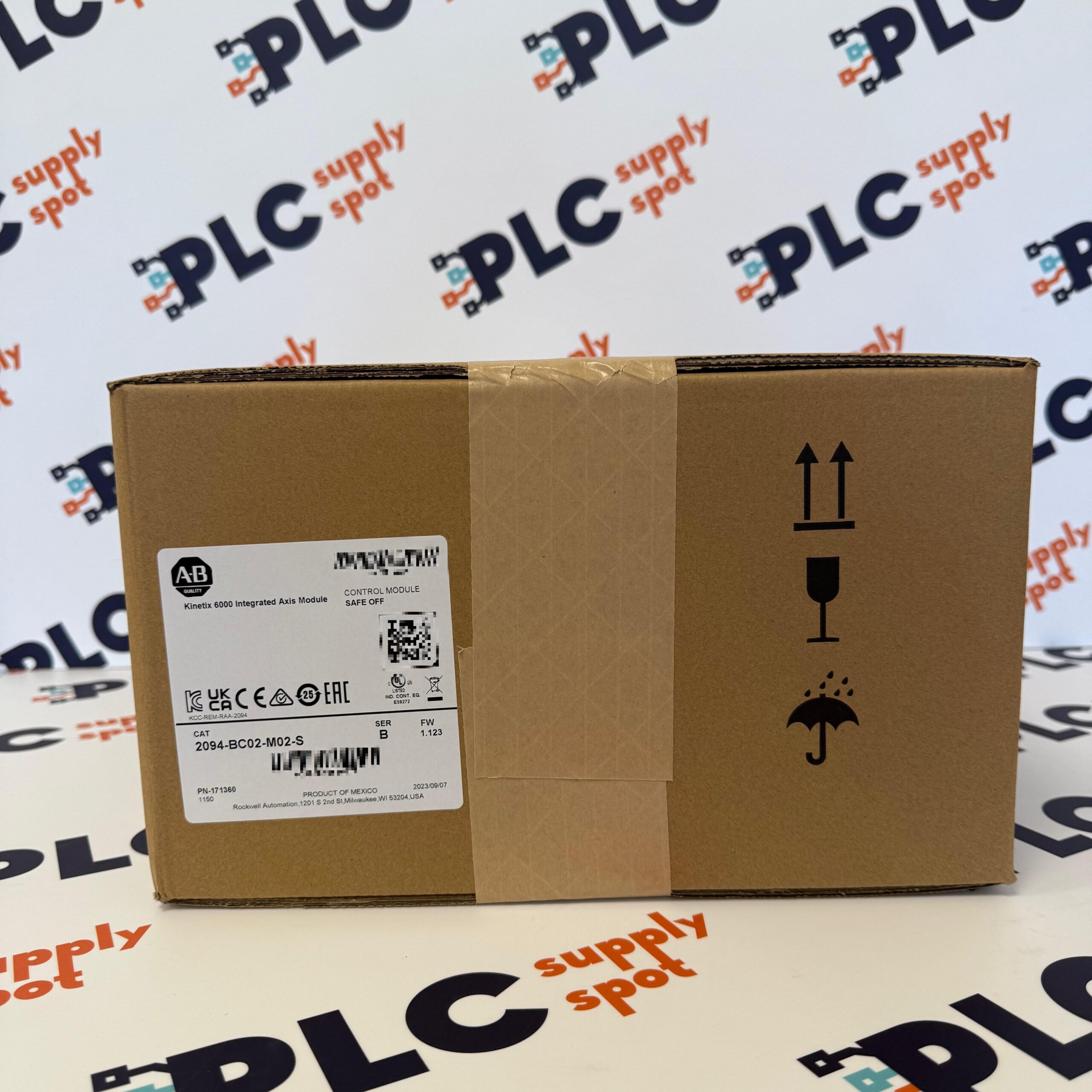

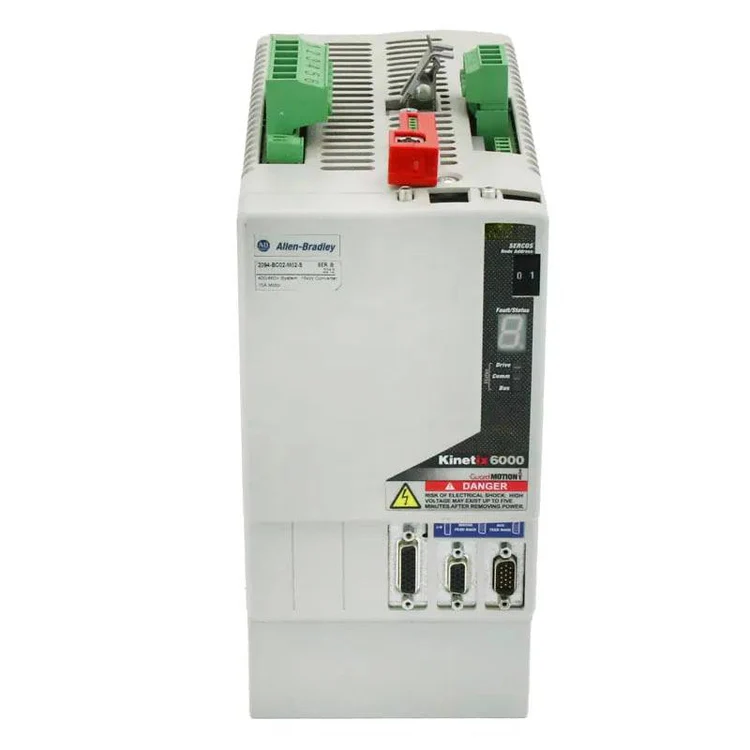

Allen-Bradley 2094-BC02-M02-S – Kinetix 6000 integrated axis module

The Allen-Bradley 2094-BC02-M02-S is an integrated axis module from the Kinetix 6000 motion control platform. It combines the functions of a servo drive and axis control in a single compact module, simplifying installation and reducing system wiring in multi-axis motion control systems.

The module provides precise control of motor speed, torque and position and is commonly used in automation systems requiring synchronized motion and high dynamic performance. It integrates seamlessly with Rockwell Automation motion control architectures and ControlLogix PLC systems.

Technical overview:
• Product type: Integrated servo axis module
• Series: Kinetix 6000
• Model: 2094-BC02-M02-S
• Controlled axes: 1 servo axis
• Continuous output current: approx. 2.8 A
• Peak output current: approx. 8.4 A
• DC bus voltage: approx. 325 V DC
• Communication: SERCOS interface via motion control modules
• Compatible motors: Allen-Bradley Kinetix servo motors
• Integrated drive and axis control functionality
• Mounting: Kinetix 6000 drive chassis system
• Operating temperature: 0°C to +50°C
• Designed for industrial environments

Typical applications:
• Multi-axis motion control systems
• Industrial robotics and automation cells
• Packaging and assembly machines
• CNC and precision motion equipment
• Automated production machinery

About the manufacturer:
Allen-Bradley, a brand of Rockwell Automation, is one of the world’s leading manufacturers of industrial automation equipment. The company develops PLC systems, motion control technologies, industrial communication networks and integrated automation solutions widely used in manufacturing and process industries worldwide.
