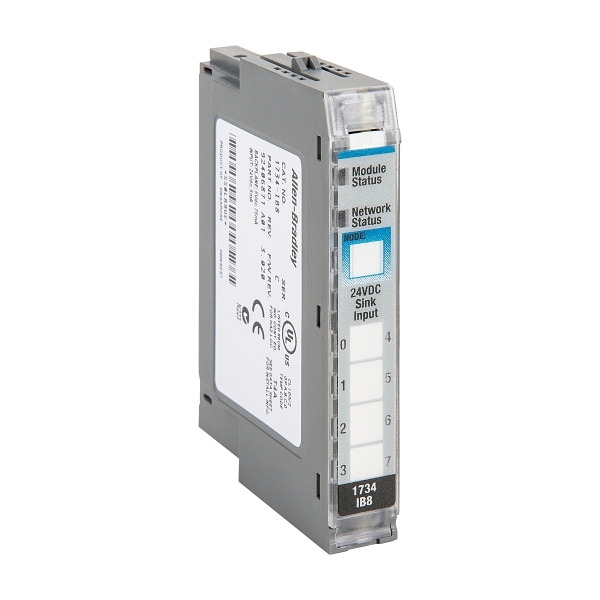

Allen-Bradley 1734-IB8 – POINT I/O digital input module

The Allen-Bradley 1734-IB8 is an 8-point sinking (NPN) digital input module designed for use in POINT I/O distributed I/O systems with a 24 V DC supply. It provides discrete input channels for monitoring sensor and switch signals, supporting integration with PLC control architectures.

Each input channel is sinking type, intended to interface with sourcing field devices operating at 24 V DC. The module includes front-panel LED indicators for each input point, allowing visual confirmation of input status during operation and troubleshooting. Mounting is performed via the POINT I/O terminal base and DIN-rail infrastructure, ensuring reliable electrical connections and organized wiring.

Technical specifications:
• Module type: POINT I/O digital input
• Number of channels: 8
• Input type: sinking (NPN)
• Supply voltage: 24 V DC
• Logic voltage range: 19.2–28.8 V DC
• Input current per channel: typical for 24 V DC digital inputs
• Mounting: via POINT I/O terminal base on DIN rail
• Diagnostics: LED indicators for each channel
• Operating temperature range: industrial standard (e.g., -20 °C to +55 °C)
• Storage temperature range: industrial standard (e.g., -40 °C to +85 °C)

Key features and benefits:
• 8 sinking digital input points for discrete signal monitoring
• Designed for distributed I/O architectures
• Compatible with 24 V DC industrial field devices
• LED status indicators for each input channel
• DIN-rail installation via POINT I/O terminal base
• Supports organized wiring and maintenance

Typical applications:
• Industrial automation discrete input monitoring
• Machine status and safety switch input
• Distributed control systems
• PLC input expansion
• Process and factory automation systems

About the manufacturer:
Allen-Bradley, a brand of Rockwell Automation, provides industrial automation components, including PLC systems and distributed I/O solutions used in manufacturing and process industries worldwide.
